Troubleshooting Common Quick Die Change System Issues

Quick Die Change (QDC) systems are essential for maximizing press efficiency in manufacturing operations. This guide from ADCS provides expert solutions for common Quick Die Change System problems, detailed technical specifications of our products, and professional maintenance recommendations to ensure optimal performance. We'll cover operational issues, preventive measures, and ADCS system advantages to help you maintain peak productivity.

1. Common Quick Die Change System Problems and Solutions

Alignment Issues

• Symptom: Difficulty engaging locating pins

• Cause: Worn bushings or misaligned rails

• Solution: Replace locating bushings (ADCS Part #AB-200) and recalibrate system

Clamping Failures

• Symptom: Incomplete or uneven clamping force

• Cause: Hydraulic pressure loss or worn seals

• Solution: Check hydraulic unit (maintain 150-200 bar) and replace seals

Tooling Compatibility Problems

• Symptom: New dies won't interface properly

• Cause: Non-standard tooling dimensions

• Solution: Use ADCS universal adapters (UA-300 series)

System Performance Comparison

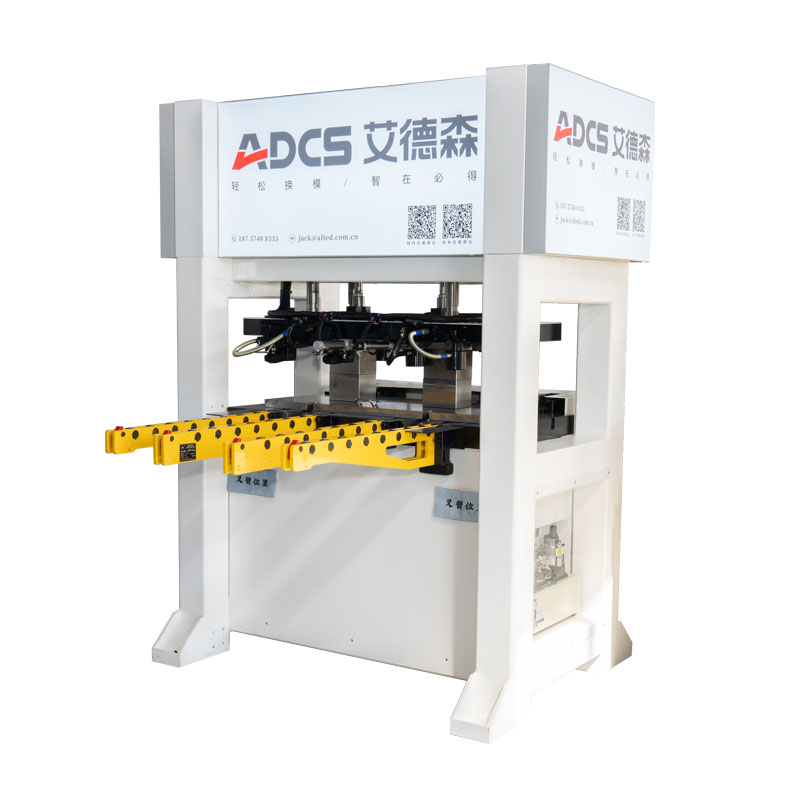

2. ADCS Quick Die Change System Specifications

Technical Parameters

Key Features

✔ Self-lubricating guide rails
✔ Smart positioning sensors
✔ Universal die adapters
✔ Remote diagnostics capability
✔ Shock-absorbing clamping heads

3. Preventive Maintenance for Quick Die Change Systems

Daily Checks

• Lubrication levels (ADCS Premium Grease #PG-100)

• Hydraulic pressure (150-200 bar)

• Sensor functionality

• Guide rail cleanliness

Monthly Maintenance

1. Complete system calibration

2. Bushing and bearing inspection

3. Hydraulic filter replacement

4. Electrical connection check

Annual Overhaul

• Replace all wear components

• System software update

• Full accuracy verification

• Safety system testing

4. Advantages of ADCS Quick Die Change Systems

Performance Benefits

• 90% reduction in changeover time

• 50% longer component lifespan

• 30% improvement in press utilization

• Universal compatibility with major press brands

Technical Support Services

✔ 24/7 remote diagnostics
✔ On-site technician dispatch
✔ Spare parts inventory management
✔ Operator training programs

Contact Our Quick Die Change Experts:
📧 Email: michael@twentytwocats.com

With 15 years of experience in die change automation, I personally guarantee ADCS Quick Die Change Systems will transform your manufacturing efficiency. Our engineering team stands ready to solve your most challenging production bottlenecks.
